SPROCKETS, RIMS AND SEGMENTS

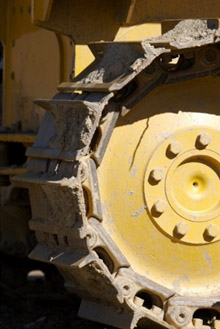

Trek carries a complete line of Sprockets and Rims, cast silicon manganese steel, total induction-hardened and tempered in the tooth root and bushing contact areas.  Minimum 5.0mm depth, HRC 45

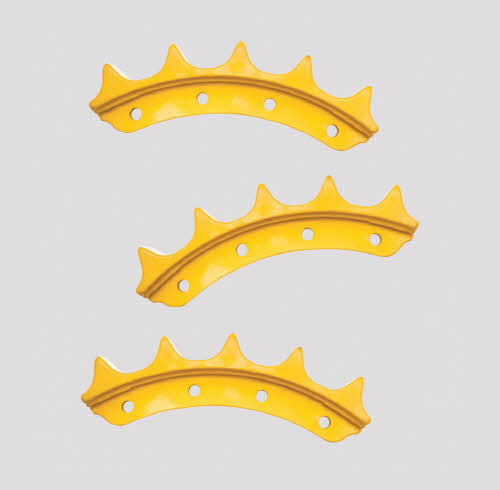

Forged Segment Groups are through hardened which supplies excellent bolt retention and wear performance.  Surface minimum hardness is HRC 50

Popular Sprocket Models include:

CATERPILLAR®		EXCAVATORS		HITACHI©	JOHN DEERE®	KOMATSU®	CASE®
215	951C	330CX	R200-3	2154D	350B	D21E-6	1150
215B	955H	618	R290	3510	350S	D30-31	1150D-E
225	D3-3C	628	R320LC7	EX60-1-5	450C	D31A-17	1150ELG
225-4	D3C	860	R360-3	EX120	450-H	D31EX21	1450B
225-5	D3G	BD2G	S15	EX150	650G	D32E-1	350
235-6	D4	C260-6	S220LCV	EX200-1	650G-H	D39E-1	350B
235-7	D4D-E	DX420	S300LC	EX200-2	690B	D39EX21	450
245-8	D5	DX480LC	SE130LC	EX200-3	690D	D41E-6	450A
307B-C	D6	EC140	SE210-1	EX300-3	690E-LC	D87E	450C
312-B	D6C	EC240B	SE210-2	EX300-5	693D	PC100-5	450CLGP
315	D6H	EC290	SE280-2	EX400-1	750	PC120-3	550E
320-B	D7	EC460-B	SE350	EX550	755	PC1250	550ELGP
325-B	D7E	JS160	SK100	EX700	790D	PC138US	850D
330-B	D8H	K907	SK200-5	EX1200	850-B	PC200	850DLGP
345	D8N-T	LIEB952	SK210-8	UH07-7	855	PC200-5	850E
350	D9G	LS2650Q	SK220-3	UH07LC7	892D-LC	PC300-3	850ELGP
365	D9H	LS2800C	SK250LC	ZX135	JD450S	PC300-6	850K
375	E120B	LS2800Q	SK300	ZX210-3		PC400-6	850KLGP
385	E200B	LS3400C	SK330-8	ZX240-3		PC600-6	CX800
933	EL240	LS4300	SK400-3	ZX270-3		PC60-6
951B	EL300-B	MX55	SK480	ZX350-3		PC650

Popular Segment Models include:

CATERPILLAR®					JOHN DEERE®	KOMATSU®
943	D3K	D5H	D7F	D8T	1050J	D155	D51EX
953C	D4D	D6C	D7F-G	D9G	700H	D155AX3	D55
955K	D4H	D6C-D	D7H	D9G-H	700J-K	D275A-2	D57S
963D	D5	D6H	D8	D9L	750C	D275A-5	D60-65
977K	D5-5B	D6M	D8H-K	D9N	755D	D355	D61EX12
D3B-C	D5C	D7	D8L	D10N	850C	D375A-2	D65E-12
D3G-D4G	D5G	D7E	D8N	D11N-R	950J	D40-53	D75-85
